The high-performance PE electro fusion sleeve is a vital component in modern pipeline construction. It is engineered to deliver permanent, leak-proof joints on heavy-duty HDPE piping systems. Since our establishment in 2008, clients worldwide have trusted the electro fusion jointing technologies developed by Qingdao TSD Plastic Co., Ltd. We combine advanced scientific research with rigorous technical development. This allows us to produce premium girth-welding joint products. These products securely connect large-diameter municipal water lines, gas pipelines, crude oil transmission lines, and thermal insulated networks.
As a leading manufacturer, we focus on delivering jointing solutions that match the host pipe's lifespan. Our high-density polyethylene (HDPE) electrofusion couplers provide ultimate protection against joint degradation. They ensure complete environmental safety and fluid containment. Reach out to our engineering team today to discuss your specific project needs.
Modern pipeline infrastructures demand materials that withstand severe external pressures, chemical corrosion, and temperature fluctuations. Our PE electro fusion sleeves are designed for high-stakes applications where joint failure is unacceptable. From municipal water systems to critical gas pipelines, these sleeves offer vital structural reinforcement. They maintain the flexibility and integrity of PE100 and PE4710 piping networks.
These jointing solutions are ideal for HDPE lines operating under extreme mechanical stress. For pre-insulated pipes in district heating networks, our electrofusion systems create an impervious moisture barrier. This protects the underlying polyurethane insulation layer and the carrier pipe from external damage.
We engineer our comprehensive selection of PE electro fusion sleeve products using premium bimodal HDPE raw materials. Every sleeve and weld band features integrated precision heating elements for a controlled fusion process. Our embedded heating wire layout ensures uniform heat distribution during installation. This eliminates cold zones and secures a flawless molecular bond across the joint interface.
Our product lineup meets diverse pipeline construction scenarios, from trenchless installations to above-ground distribution networks. We specialize in two primary configurations. These include spiral weld bands for massive structural pipelines and insulated wrap-around sleeves for district energy networks.

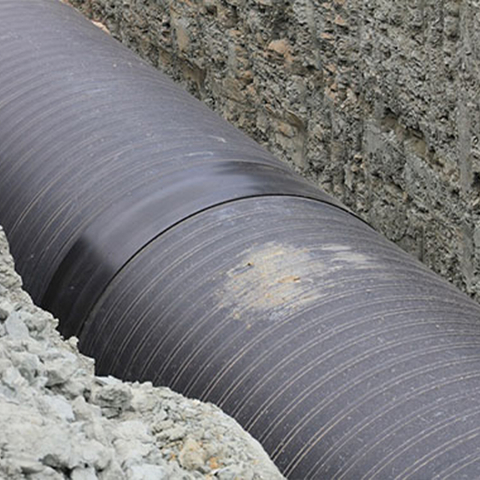

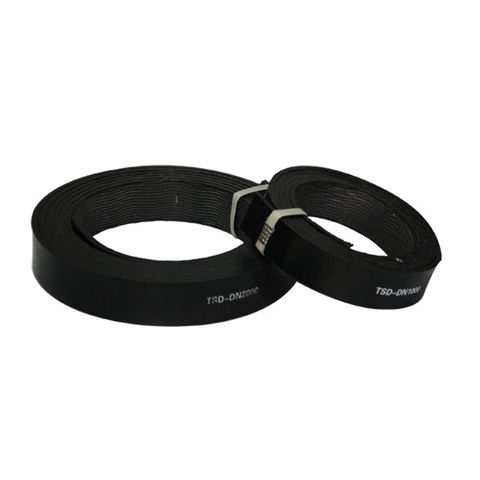

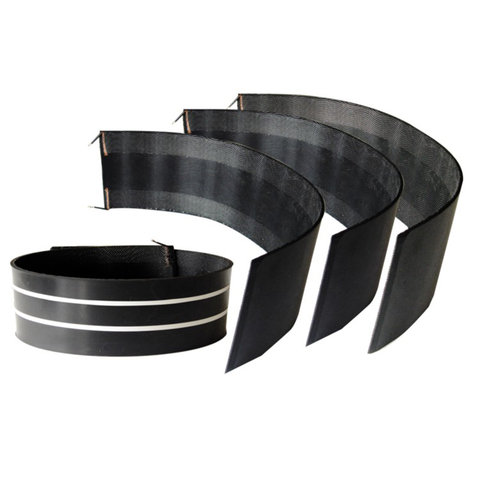

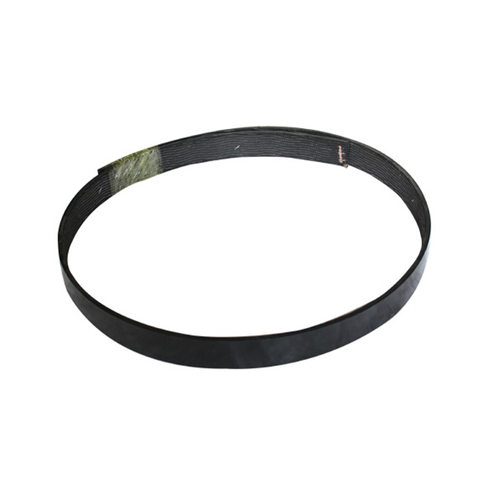

Engineered for high-stress applications, our HDPE PE electro fusion weld band spirals provide remarkable structural reinforcement on large-diameter plastic pipe joints. The unique spiral configuration conforms seamlessly to the pipe's outer diameter. This accommodates natural ovality and thermal contraction. These bands are highly suitable for major municipal wastewater systems and industrial process piping. They excel where pipeline diameters exceed standard dimensions and require 100% leak-proof welds.

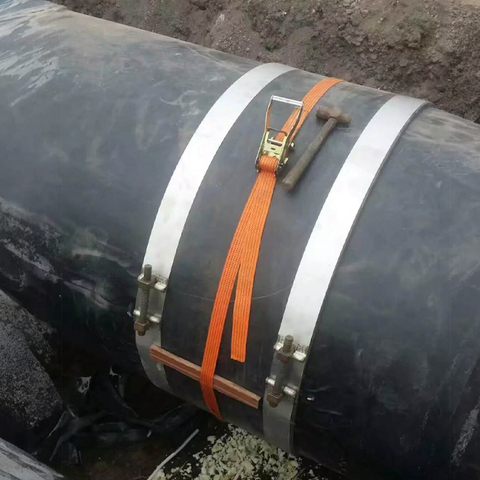

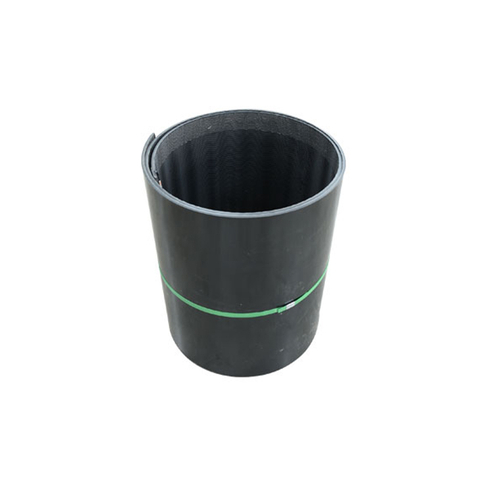

Our insulated PE electro fusion weld wrap sleeves are the premier choice for pre-insulated pipeline systems. The specialized wrap-around design significantly simplifies on-site assembly. Technicians can wrap and secure the sleeve directly over joint zones without sliding it along the pipeline first. This ensures a tightly sealed connection that prevents thermal loss and moisture penetration. Ultimately, it maintains the thermal efficiency of your entire utility network.
Our electro fusion jointing components are manufactured in strict compliance with standard dimensional parameters to ensure flawless performance. The range is optimized for standard PE100 and PE4710 resin specifications, supporting SDR11 and SDR17 pressure ratings. Additionally, our sleeves feature standard electrical terminals. These are fully compatible with automatic, barcode-scanner-ready welding equipment. This compatibility facilitates complete weld tracking and quality control in the field.
| Product Configuration | Compatible Pipe OD Range | Standard Pressure Ratings | Compatible Materials | Primary Industry Application |
|---|---|---|---|---|
| HDPE PE Electro Fusion Weld Band Spirals | DN 200 - DN 2000+ | SDR11, SDR17, SDR21 | PE80, PE100, PE4710 | Gas pipelines, municipal water systems, crude oil lines |
| Insulated PE Electro Fusion Weld Wrap Sleeves | DN 150 - DN 1600 | SDR11, SDR17, SDR26 | HDPE, Polyurethane insulation jacket | Pre-insulated district heating networks, thermal piping |
| HDPE Electrofusion Couplers | DN 50 - DN 1200 | SDR11, SDR17 | PE100, PE4710 | High-pressure municipal & industrial supply lines |
Pipeline design engineers frequently debate between utilizing a PE electro fusion sleeve or a traditional heat shrinkable casing. While both systems protect girth welds, they rely on fundamentally different technologies. A heat shrinkable sleeve functions through torch-applied heat and a hot-melt mastic adhesive layer. This creates a strong mechanical and adhesive seal. It remains an excellent, cost-effective solution for pipeline anti-corrosion on steel lines.
In contrast, our electro fusion technology uses electrical resistance wires to melt the HDPE interface. This causes the sleeve and the pipe to fuse together at the molecular level. The result is a homogeneous, high-strength plastic joint with no adhesive interface to degrade over time. As a specialized manufacturer of both technologies, Qingdao TSD Plastic Co., Ltd. can guide your selection. We provide product recommendations customized to your project’s specific pressure and mechanical stress requirements.
Since 2008, Qingdao TSD Plastic Co., Ltd. has developed extensive expertise in pipeline jointing and anti-corrosion products. We operate advanced manufacturing machinery with a highly skilled technical workforce. This ensures every PE electro fusion sleeve leaves our factory with zero defects. Our robust global footprint proudly serves a diverse customer base of over 500 satisfied clients worldwide.
To guarantee a smooth international purchasing experience, our dedicated export affiliation with VR' Shining Co., Ltd. oversees global distribution. They handle all export documentation, logistics, and delivery timelines with maximum efficiency. When you source from us, you partner with a world-class factory-direct supplier. We consistently prioritize product quality, reliability, and dedicated technical support.
We understand that modern infrastructure projects require specialized dimensions and custom-engineered plastic solutions. Qingdao TSD Plastic offers comprehensive OEM and custom manufacturing for our weld band products. We can adjust width, thickness, and sheet configurations to match your pipeline's specific outer diameters. Our team provides flexible minimum order quantities and competitive wholesale pricing.
Beyond manufacturing premium sleeves, we are a comprehensive plastic welding equipment supplier. We offer automatic butt joint welding machines for plastic sheets and hydraulic butt fusion machines for HDPE pipes. We also supply high-quality extruded black plastic welding rods for pipe repair. Providing both jointing materials and welding equipment ensures your contracting teams have the right tools for field execution. As a trusted PE electro fusion sleeve manufacturer, Qingdao TSD Plastic Co., Ltd. is ready to support your bulk orders.
Our PE electro fusion sleeve uses embedded electrical heating coils. These melt and fuse the sleeve directly with the host PE pipe to create a continuous, high-strength plastic joint. Conversely, heat shrinkable sleeves rely on an external heat torch. This shrinks the sleeve over the joint and seals it with a specialized hot-melt mastic adhesive layer.
Yes, they are highly compatible. We manufacture our electro fusion sleeves and weld bands using premium bimodal HDPE PE100 and PE4710 virgin resins. This ensures full compatibility, high chemical resistance, and excellent pressure performance for SDR11 and SDR17 pipeline systems.
Absolutely. We specialize in custom manufacturing to meet your exact project needs. Our engineering team can adjust the width, thickness, and length of our insulated wrap sleeves and spiral weld bands. This ensures a perfect match for your pipeline's outer diameter and thermal insulation requirements.
Our sleeves are designed for use with standard, barcode-scanner-ready electrofusion welding machines. To support your installation teams, Qingdao TSD Plastic also supplies compatible automatic hydraulic butt fusion equipment. This provides a complete and reliable pipeline installation package.
