Abrasion Resistant Heat Shrinkable Sleeve Rolls Offshore

The TSD85 abrasion resistant heat shrinkable sleeve rolls represent a cutting-edge pipeline corrosion protection solution engineered for demanding industrial environments. Designed specifically for welded joint protection on pipelines operating at temperatures up to 85°C, this advanced system incorporates a unique adhesive technology that delivers superior bonding performance compared to traditional alternatives. Our offshore heat shrink sleeve system features special surface active agents that enable reliable adhesion to lower surface energy coatings, significantly reducing installation preheat requirements while maintaining exceptional bond strength to both PE and FBE surfaces. Available in bulk rolls or pre-cut to exact pipe dimensions, the TSD85 heat shrinkable sleeve offers unmatched flexibility for large-scale pipeline projects across global energy markets.

Core Advantages & Benefits

Superior Force Cured Epoxy Technology

Our pipeline corrosion protection sleeve utilizes a proven force curing method for liquid epoxy application to steel surfaces. This innovative approach allows installers to conduct pre-inspection of joints before sleeve application, ensuring quality control at every stage. The force cured epoxy remains securely in place during alignment and shrinking processes, eliminating displacement risks and guaranteeing consistent protection.

Advanced Adhesive Formulation

The heat shrink sleeve for welded joints features a proprietary adhesive that remains "open" longer than conventional products, providing extended working time for installers. This unique formulation enables direct bonding to mainline coatings, with epoxy only required on exposed steel surfaces. The result is lower installation preheat temperatures (minimum 110°C) and exceptional adhesion to PE, PP, FBE, and HPPC coatings.

Long-Term Durability & Protection

Constructed with the structural integrity of a seamless tube, our abrasion resistant heat shrinkable sleeve rolls deliver outstanding resistance to cathodic disbondment, chemical attack, and mechanical abrasion. With a tensile strength of 21MPa and 600% elongation, the sleeve maintains its protective properties even under extreme pipeline movement and environmental stress.

Cost & Time Efficiency

Reduced preheat requirements translate to significant time savings during installation, lowering overall project costs. The system's compatibility with multiple coating types eliminates the need for specialized surface preparation, further streamlining operations and reducing downtime.

Technical Specifications

Applications & Use Cases

The TSD85 heat shrinkable sleeve is ideal for critical pipeline applications where reliable corrosion protection is essential. Primary uses include:

Offshore oil and gas transmission pipelines

Onshore crude oil and natural gas pipelines

Refinery and petrochemical plant piping systems

Water and wastewater transmission lines

Industrial process piping networks

Our engineering team specializes in custom solutions, designing and compounding heat shrinkable sleeve rolls to meet specific project requirements, including custom thicknesses, widths, and performance characteristics.

FAQ

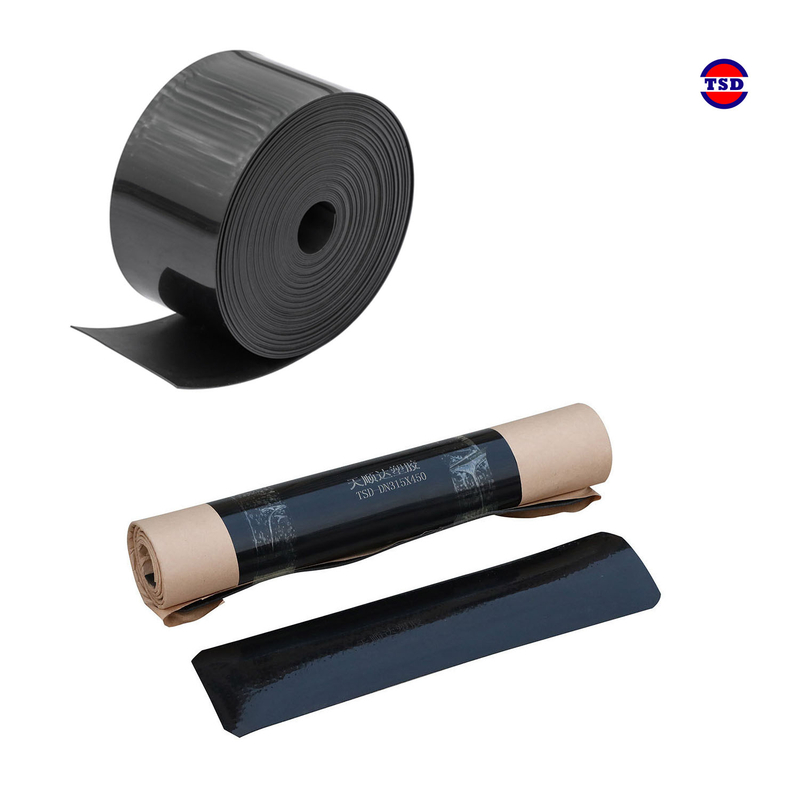

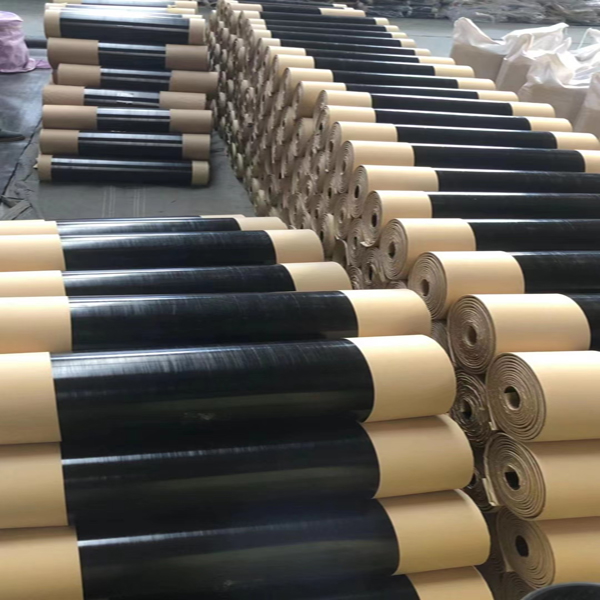

What is the difference between bulk rolls and pre-cut sleeves?

Bulk rolls offer maximum flexibility for projects with varying pipe sizes, allowing on-site cutting to exact dimensions. Pre-cut sleeves are factory-sized to specific pipe diameters, reducing installation time and material waste for large-scale projects with uniform pipe sizes.

Can the TSD85 sleeve be used with all types of pipeline coatings?

The heat shrink sleeve for PE and FBE coatings is specifically formulated for compatibility with PE, PP, FBE, and HPPC coatings. For other coating types, our technical team can provide customized adhesive solutions.

What is the expected service life of the TSD85 system?

When installed according to manufacturer guidelines, the TSD85 system provides reliable corrosion protection for 30+ years, making it a cost-effective long-term solution for pipeline infrastructure.
