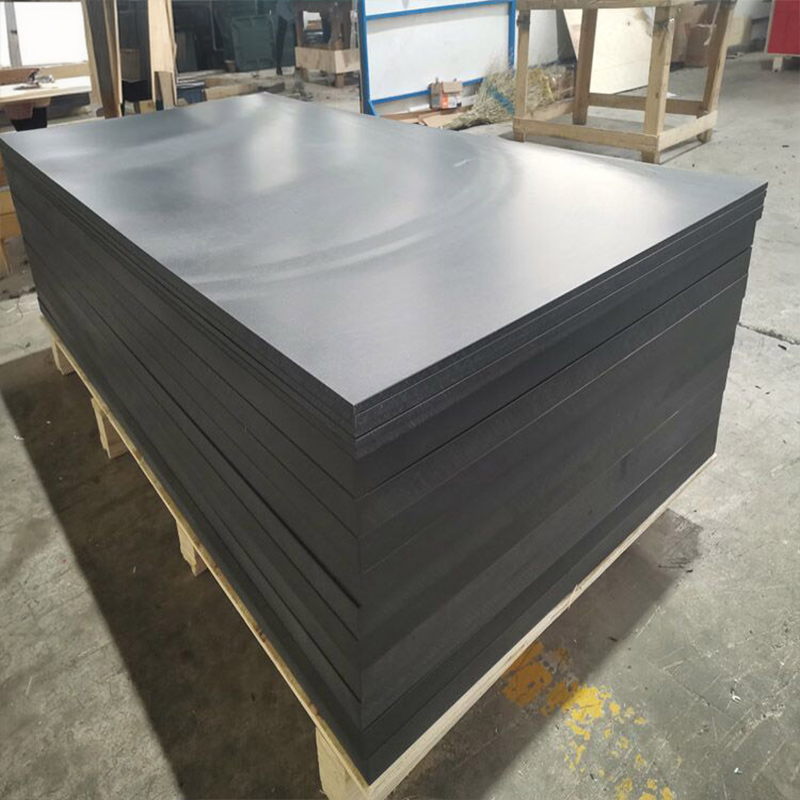

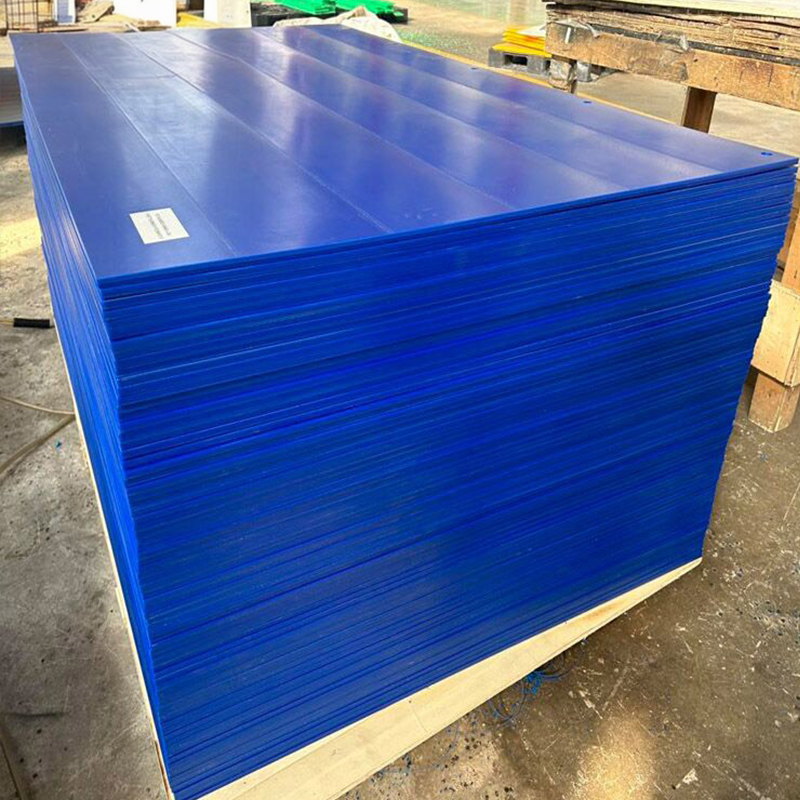

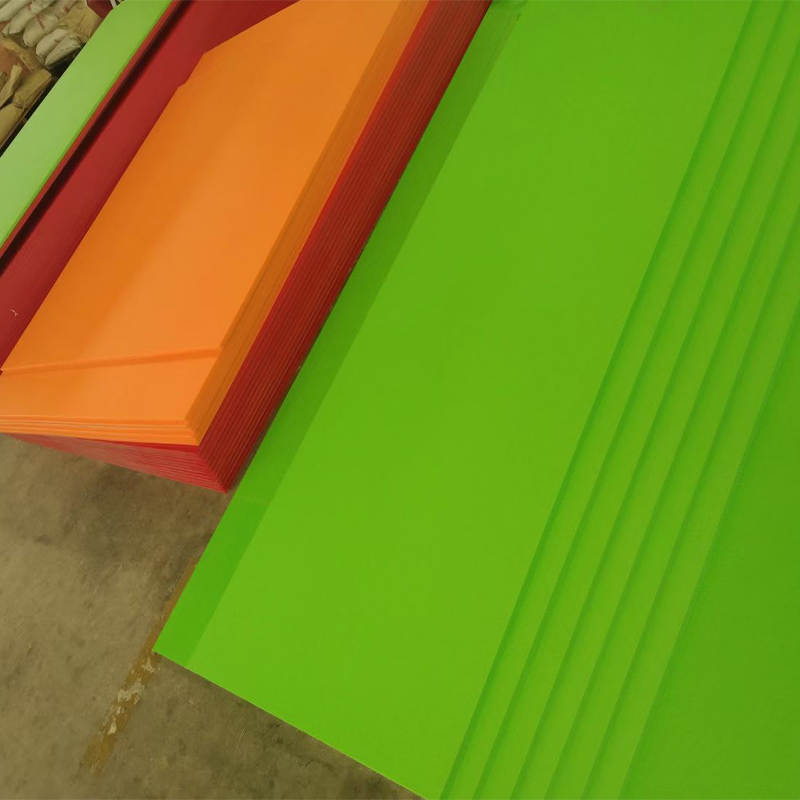

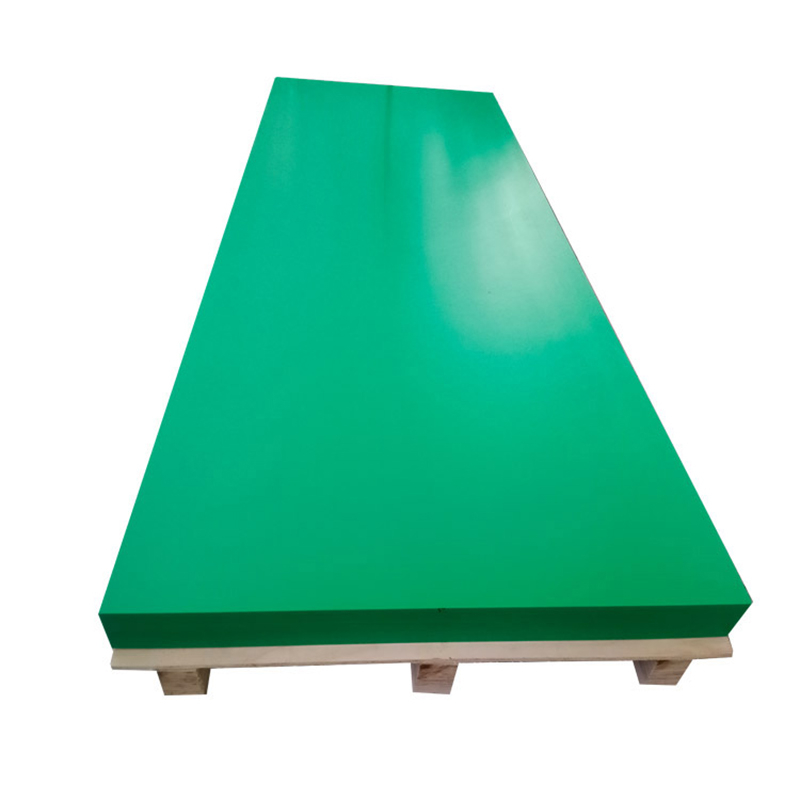

TSD UHMWPE Sheet, or PE500, PE1000 range of Ultra High Molecular Weight Polyethylene has a very high impact strength and wear resistance given it’s extremely long molecular chains and molecular mass of between 4.5 to 7.5 million amu. Service temperature range from -260 degrees C to +80 degrees C. The UHMWPE range is available in Natural (White), Green & Black Anti Static(AS), Black Fender, Super lining Blue with longer wear life. All UHMWPE sheets are molded pressed and planed and have very good machining properties which make this an ideal material for food production, port construction and mining applications..
Advantages of TSD UHMWPE board:
Very high abrasion resistance and impact resistance
Low coefficient of friction
Self-lubricating on non-adhesive surfaces
Reduce maintenance costs and extend equipment life
Corrosion resistance
Extremely robust
Good chemical resistance
Low moisture absorption
Features of TSD PVC Plastic Sheets:
UHMW-PE sheet is the perfect solution for the demanding needs of many different industries, including manufacturing, construction, and even marine applications. These tough materials are valued for their high wear resistance and superior impact strength. UHMW Sheet is used in various industries as below:
Oil & Gas
Conveyor & Automation
Paper & Pulp
Waste Water Treatment
Building & Construction
Heavy Equipment
Transportation
Food & Beverage
Solar Industry
Nuclear Industry
Mining Industry
Marine
Bulk Material Handling
Mechanical Engineering Industry
Specification:
Specific Gravity, 73°F | 0.944 | g/cm3 |
Tensile Strength @ Yield, 73°F | 3250 | psi |
Tensile Modulus of Elasticity, 73°F | 155,900 | psi |
Tensile Elongation (at break), 73°F | 330 | % |
Flexural Modulus of Elasticity | 107,900 | psi |
Compressive Strength at 2% deformation | 400 | psi |
Compressive Strength 10% Deformation | 1200 | psi |
Deformation Under Load | 7 | % |
Compressive Modulus of Elasticity, 73°F | 69,650 | psi |
Hardness, Durometer (Shore "D" scale) | 69 | |
Izod Impact, Notched @ 73°F | 30 | ft.lbs./in. of notch |
Coefficient of Friction (Dry vs Steel) Static | 0.17 | |
Coefficient of Friction (Dry vs Steel) Dynamic | 0.14 | |
Sand Wheel Wear/Abrasion Test | 95 | UHMW=100 |
Coefficient of Linear Thermal Expansion | 11 | in/in/°F x 10-5 |
Melting Point (Crystaline Peak) | 279-289 | °F |
Volume Resistivity | >1015 | ohm-cm |
Surface Resistivity | >1015 | ohm-cm |
Water Absorption, Immersion 24 Hours | Nil | % |
