The Heat Shrinkable Tape system provides superior corrosion protection and excellent bonding of welded joints on pipelines operating up to 80C. TSD-80 sleeve has been designed with a unique adhesive technology that remains “open”longer than traditional adhesives. Also, special surface active agents allow bonding to lower surface energy coatings. As a result, lower preheat temperatures are required to attain true adhesive wet-out and superior bonding to PE and FBE surfaces is achieved.
Our corrosion resistant heat shrinkable tape is a high-performance, industry-grade pipeline corrosion protection solution, specially engineered for welded joints of oil & gas pipelines with continuous operating temperatures up to 85℃.
Built with a proprietary force cured epoxy system and unique adhesive formulation, our heat shrinkable tape delivers superior bonding performance to PE, PP, FBE and HPPC mainline coatings, while requiring lower preheat temperatures than traditional pipeline protection products. Designed to meet stringent ASTM, DIN and ISO international standards, this heat shrinkable wrap tape provides seamless, long-lasting anti-corrosion protection for even the most demanding pipeline construction and maintenance projects. It is the trusted choice for pipeline operators, EPC contractors and oil & gas project owners worldwide seeking reliable, cost-effective and easy-to-install pipeline corrosion protection.
Our heat shrinkable tape adopts a proven force cured liquid epoxy system, which fully bonds to the bare steel surface of pipeline joints before sleeve application. This unique process allows installers to pre-inspect the joint coating quality prior to sleeve installation, and ensures the epoxy will not be displaced during the sleeve alignment and heat shrinking stages. For pipeline contractors, this means zero installation rework risk, reduced field failure rates, and full compliance with project quality specifications, eliminating costly post-operation corrosion maintenance and pipeline downtime.
Formulated with industry-leading adhesive technology and specialized surface active agents, our heat shrinkable tape achieves complete adhesive wet-out and permanent bonding to low surface energy coatings at a minimum installation temperature of 110℃, far lower than conventional pipeline heat shrink products. This innovative formulation bonds directly to the mainline pipeline coating, with epoxy only required for the bare steel joint, simplifying installation steps. Lower preheat requirements cut down on-site heating time and fuel costs, speed up overall installation progress, shorten project construction cycles, and deliver consistent, reliable bonding performance for even the most complex pipeline projects.
Once installed, our pipeline heat shrinkable tape forms a seamless, high-integrity protective barrier with the structural strength of a seamless tube. It delivers outstanding resistance to cathodic disbondment (3 mm rad @ 23℃, 28 days with epoxy, tested per ASTM G8), harsh chemical attack, and extreme mechanical abrasion. This durable protective layer ensures a 30+ year service life for pipeline welded joints, drastically reduces corrosion leakage risk, lowers long-term operation and maintenance costs for oil & gas operators, and fully meets the anti-corrosion requirements of buried, offshore and above-ground pipeline systems.

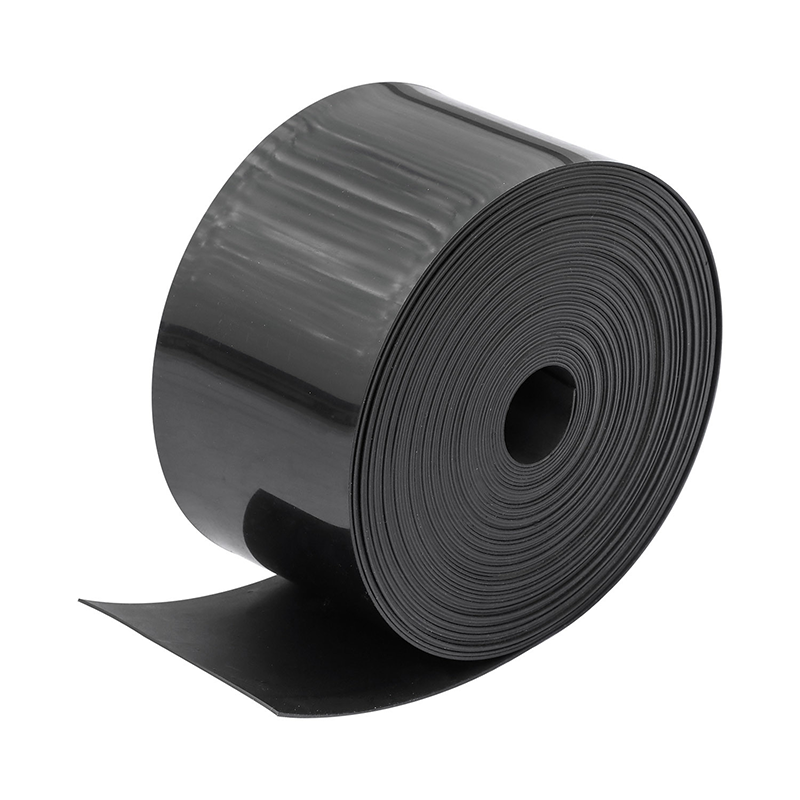

We offer our corrosion resistant heat shrinkable tape in two flexible formats: bulk continuous rolls for large-scale projects, or pre-cut wraparound sleeves tailored to exact pipe diameters. We support full customization of sleeve thickness from 2.0mm to 3.2mm, and sleeve width from 50mm to 1000mm, with custom formulation design available for unique project working conditions. This flexibility eliminates on-site cutting waste, adapts to various pipeline diameters and construction scenarios, and is suitable for both small-scale pipeline repair works and large-scale cross-country pipeline construction projects.
Our heat shrinkable tape is engineered to drive down total project costs without compromising on performance. Lower preheat requirements reduce on-site installation time and labor input, while the high-reliability formulation minimizes post-installation maintenance and unplanned rework. For EPC contractors and project owners, this directly reduces total project expenditure, shortens construction timelines, and improves overall project profitability, while ensuring full compliance with global pipeline corrosion protection standards.
Sleeve Operating Characteristics | Test Method | Test Result | |
Pipeline Operating Temp. | Up to 85°C | ||
Minimum Installation Temp. | 110°C (230°F) | ||
Mainline Coating Compatibility | PE,PP, FBE,HPPC | ||
Adhesive Properties | |||
Softening Point | ASTM E28 | 125°C | |
Lap Shear @ 23°C | DIN 30672 | 310 N/cm2 | |
Backing Properties | |||
Tensile Strength | ASTM D638 | 24MPa | |
Elongation | ASTM D638 | 650% | |
Hardness | ASTM D2240 | 55 Shore D | |
Volume Resistivity | ASTM D257 | 1017 ohm-cm | |
Sleeve Properties | |||
Peel Strength @ 23°C | DIN30672 | 120 N/cm | |
Impact Resistance | ASTM G14 | 56Inch.LBS | |
Indentation Resistance | ISO 21809-3 | 0.65mm | |
Cathodic Disbondment @ 23℃, 28 days with epoxy | ASTM G8 | 3 mm rad | |

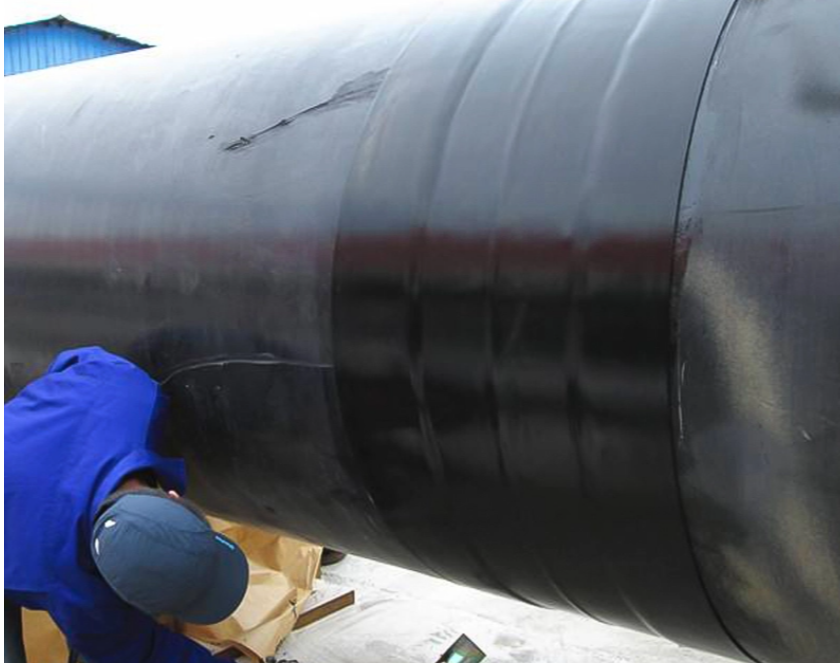

Our heat shrinkable tape is the industry-preferred anti-corrosion solution for welded joints of onshore cross-country and offshore oil & gas transmission pipelines. It delivers exceptional resistance to harsh underground soil corrosion, marine salt spray, chemical erosion and mechanical abrasion, ensuring long-term reliable protection for both buried and above-ground pipeline systems operating up to 85℃.
Engineered with extreme abrasion resistance and high bonding strength, our heat shrinkable wrap tape maintains full structural integrity and permanent adhesion even under high stress and friction during pipeline pulling operations. This makes it the ideal choice for HDD river, road and railway crossing projects for oil & gas pipelines, where conventional coating solutions are prone to damage and failure.
Our heat shrinkable tape can be custom fabricated into heat shrink end caps for pre-insulated pipes, providing a secure, waterproof and corrosion resistant seal for pre-insulated pipeline systems. It is suitable for a wide range of pre-insulated pipeline applications, including oil & gas insulated transmission lines and district heating pipeline networks.
We also support custom product design and formulation for special application scenarios and project-specific requirements. Our technical team will work closely with you to develop a tailored heat shrinkable tape solution that meets your exact project needs.
With years of dedicated R&D and manufacturing experience in pipeline corrosion protection products, [Your Brand] is a leading professional supplier of heat shrinkable tape for the global oil & gas industry. Our products have been successfully applied in hundreds of onshore, offshore and HDD pipeline projects worldwide, with a proven track record of reliable performance and full compliance with international industry standards.
We operate an in-house R&D and compounding workshop, with the ability to provide full end-to-end customization of our heat shrinkable tape. This includes custom thickness, width, roll length, formulation and packaging, as well as custom product design for special working conditions and project-specific performance requirements. We work directly with our commercial clients to develop solutions that solve their unique pipeline corrosion protection challenges.
Our entire manufacturing process follows a comprehensive ISO-certified quality management system, with rigorous raw material inspection, in-process quality monitoring, and finished product performance testing for every production batch. This strict quality control ensures consistent product performance that fully meets your project’s quality specifications, eliminating the risk of unqualified products and installation failures on site.
We provide full-cycle technical support for all our clients, including pre-sales project consultation, product selection guidance, on-site installation training, and responsive after-sales technical service. Our in-house technical team has extensive field experience, and can help you select the optimal heat shrinkable tape solution for your project, as well as resolve any installation or application issues in a timely manner to ensure smooth project progress.
With large-scale, modern production lines, we support bulk wholesale supply of heat shrinkable tape for large-scale pipeline construction projects, with reliable on-time delivery to meet your tight project schedules. Our factory-direct pricing model eliminates middleman costs, allowing us to offer highly competitive pricing without compromising on product quality, helping our clients reduce overall procurement costs and improve project profitability.
Our corrosion resistant heat shrinkable tape supports a maximum continuous pipeline operating temperature of up to 85℃, suitable for most conventional oil & gas transmission pipeline applications.
Our heat shrinkable tape requires a minimum installation preheat temperature of 110℃, which is significantly lower than traditional pipeline heat shrink products, reducing on-site heating time and installation costs.
Our heat shrinkable tape is fully compatible with all mainstream pipeline coatings, including PE (Polyethylene), PP (Polypropylene), FBE (Fusion Bonded Epoxy) and HPPC coatings.
We offer standard sleeve thickness options of 2.0mm, 2.3mm, 2.5mm, 2.8mm, 3.0mm and 3.2mm, with sleeve width ranging from 50mm to 1000mm. Custom thickness and width are available upon request.
